Notch Corner > Object - Object (Trim Menu)

www.CAD6.com

This command can be used to trim two lines so that they form a notched corner. The result will be several individual, separate objects.



1.Enter parameters

After choosing the command, the "Notch Corner" dialog appears, in which the notching parameters to be used can be entered.



2.Identify object 1 to be trimmed



The position at which the object was identified (the "ID point") affects the rest of the command. It determines which end of the object will be altered. Refer to the graphics at the end of this section.



3.Identify object 2 to be trimmed



The position at which the object was identified (the "ID point") affects the rest of the command. It determines which end of the object will be altered. Refer to the graphics at the end of this section.

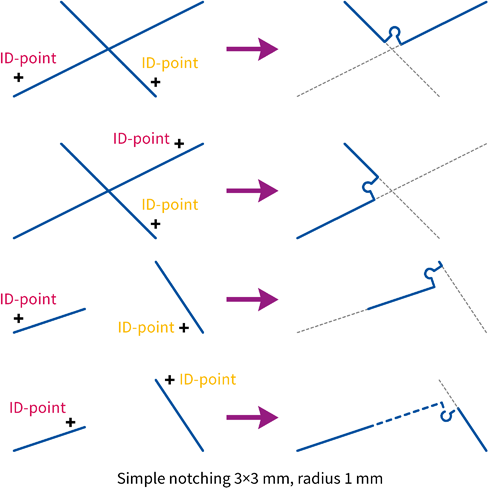

The position of the ID points determine which end of the lines will be altered. The end of the line closer to the ID point is always the one altered. In this way, any of the four possible corners can be generated and notched (see graphic).





Note a basic rule for trimming: The object changes, wherever it is clicked on.



If the corresponding option is enabled, the properties of the object identified first will be applied to all involved objects – even including the object identified second.



If the lines identified are parallel, then an error message appears.



A corner within a curve or surface can be notched using the commands Notch Corner > One Corner and Notch Corner > Complete.
