Scan Code > Bar Code PDF417 (Annotate Menu)

This command is used to create a bar code PDF417 or MicroPDF417. The default size is 1/2 millimeter per unit.

Such a PDF417 code is used for many purposes.

1.	Enter position

The point at which the code shall be inserted is chosen by clicking the mouse at any chosen point within the drawing.

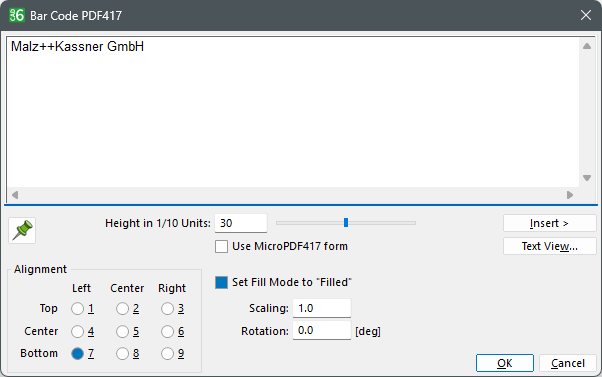

After specifying the position, a dialog appears to enter the text to be encoded and edit settings.

Options

The appearance and functionality of this dialog depends on how many objects have been selected:
