Advanced Drawing > Arrow (Draw Menu)

www.CAD6.com

This command draws a straight arrow.

1.	Enter start point

The start point of the arrow can be entered by clicking the mouse anywhere within the drawing.

2.	Enter end point

The end point of the arrow can be entered by clicking the mouse anywhere within the drawing.

Unless the "Automatically resolve the result into a surface" option is active, the arrow is stored internally as an extended object. In order to be able to manipulate it using the same commands that can be used on surfaces, you will first have to resolve it using the Shape > Resolve Extended Objects command.

The arrow is assigned to the current layer. It also contains a reference to the current pen.

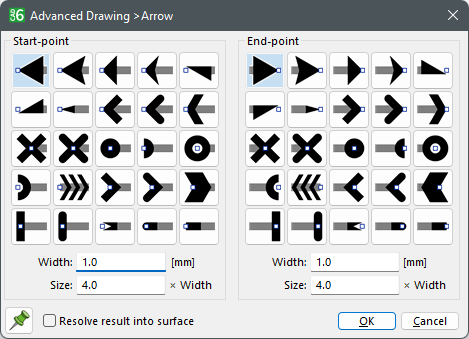

Options

How can I access information on this dialog?

The appearance and functionality of this dialog depends on how many objects have been selected:

Why do dialogs differ depending on the number of objects selected?
