Plug-In Window (Screen Elements)

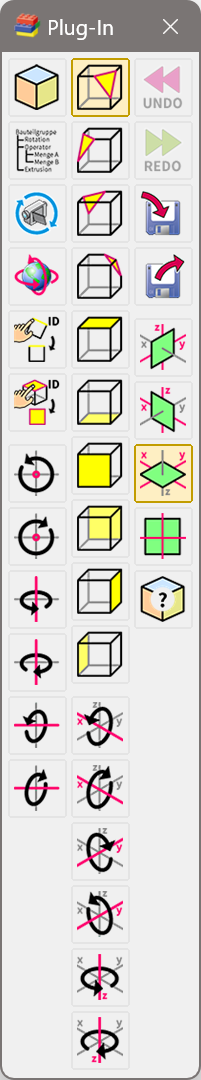

The plug-in window contains up to 100 buttons controlled by plug-ins. Clicking briefly on one of the buttons with the left mouse button chooses the plug-in function associated with that button. If applicable, clicking the right mouse button on a plug-in window button calls an options dialog window associated with this button. The exact behavior of the button is defined by the calling application.

Context Menu

The plug-in window has a context menu from which certain settings relating to it can be changed. Right-click inside the window to open it. The following commands are available (partly depending on the clicked position):

Display Parameters Dialog

Use this command to edit the parameters associated to the clicked button.

Visible

Use this command to hide the window. To show it again, use Window > Plug-In Window on/off.

Placeable

If this menu entry is checked, then the window can be placed anywhere on the screen. Otherwise, it will be aligned to the left or right edge of the screen.

Window Position

This submenu can be used to determine the desired position of the plug-in window.

Rearrange

Pushes the window into one of the four corners of the workspace. The plug-in window is normally in the upper right corner of the drawing window.

Save Position

If this menu entry is checked, then the window position will be saved when leaving the application. The next time that the application is started, it appears in the same place on the screen. The position is saved relative to the whole screen.
