Key Assignments

Malz++Kassner CAD6 is delivered with predefined keyboard assignments.

If you want to display the help text for a screen element or a menu item that the mouse pointer is currently over, press the F1 key.

The key assignment can be changed using the Options > Key Assignment command. In general, only the permanent key assignments are referred to in this help file to avoid possible errors caused by using different key assignments.

The following tables show the keyboard assignments:

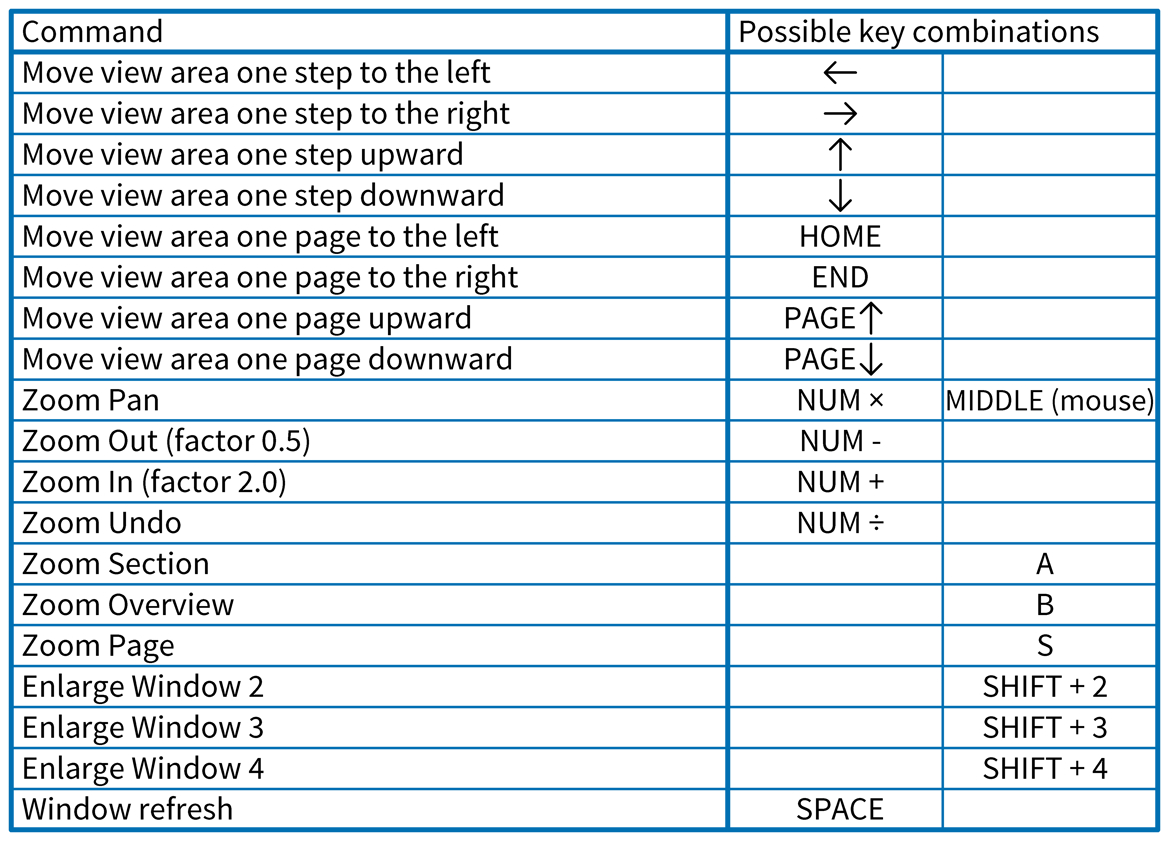

View and Zoom

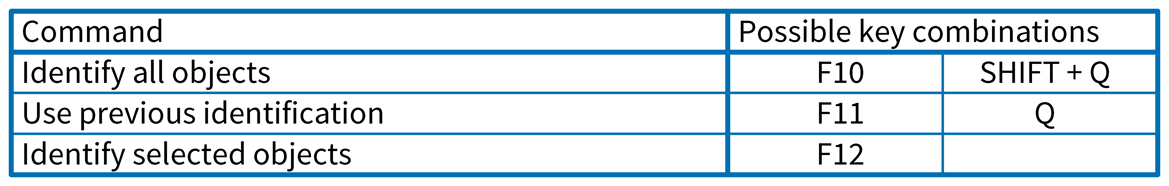

Selection and Identification

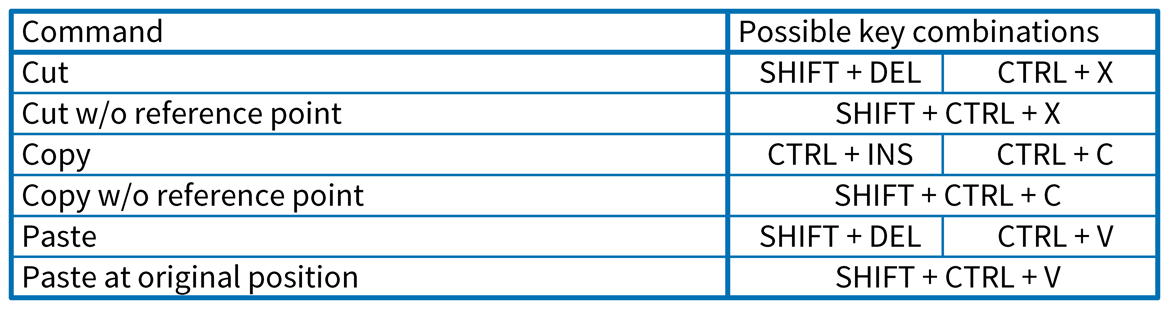

Clipboard

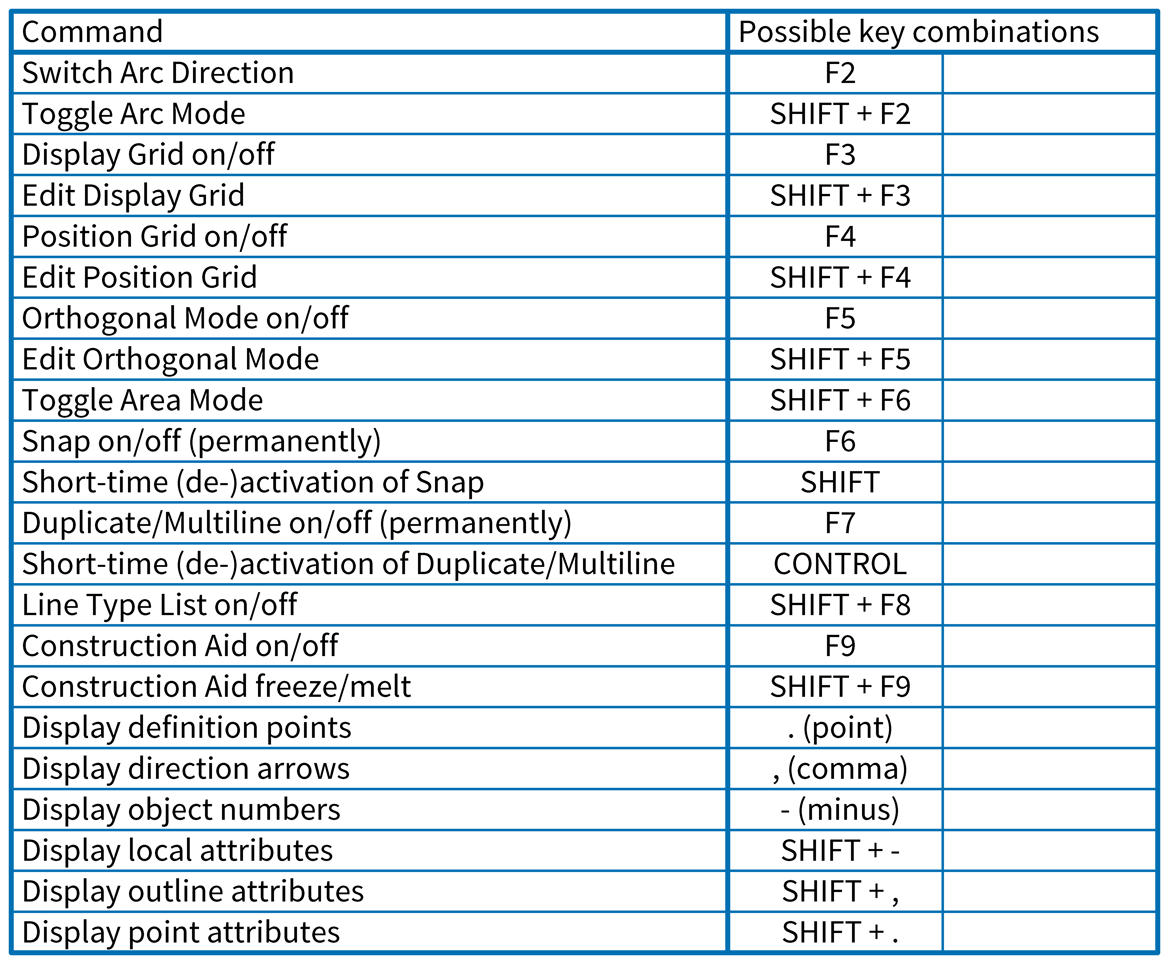

Settings

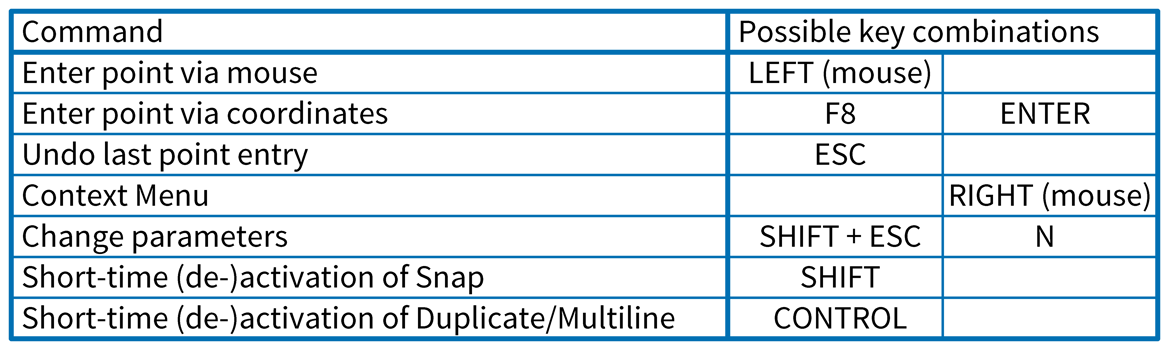

Point Entry

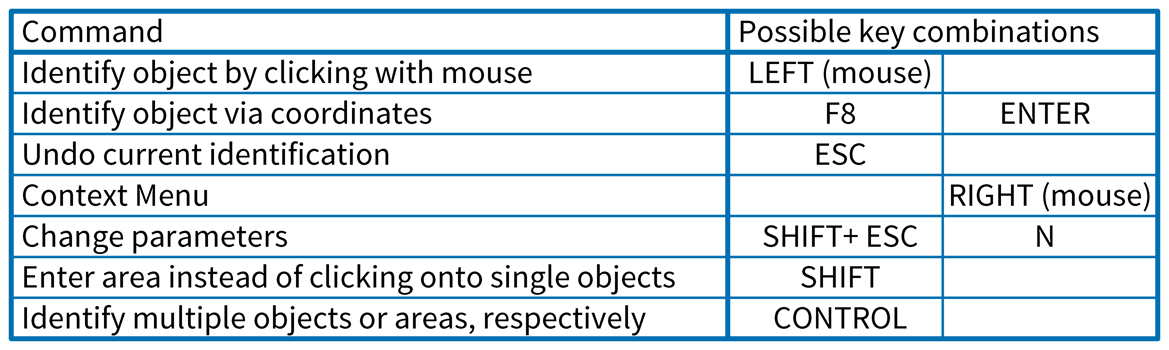

Object Identification

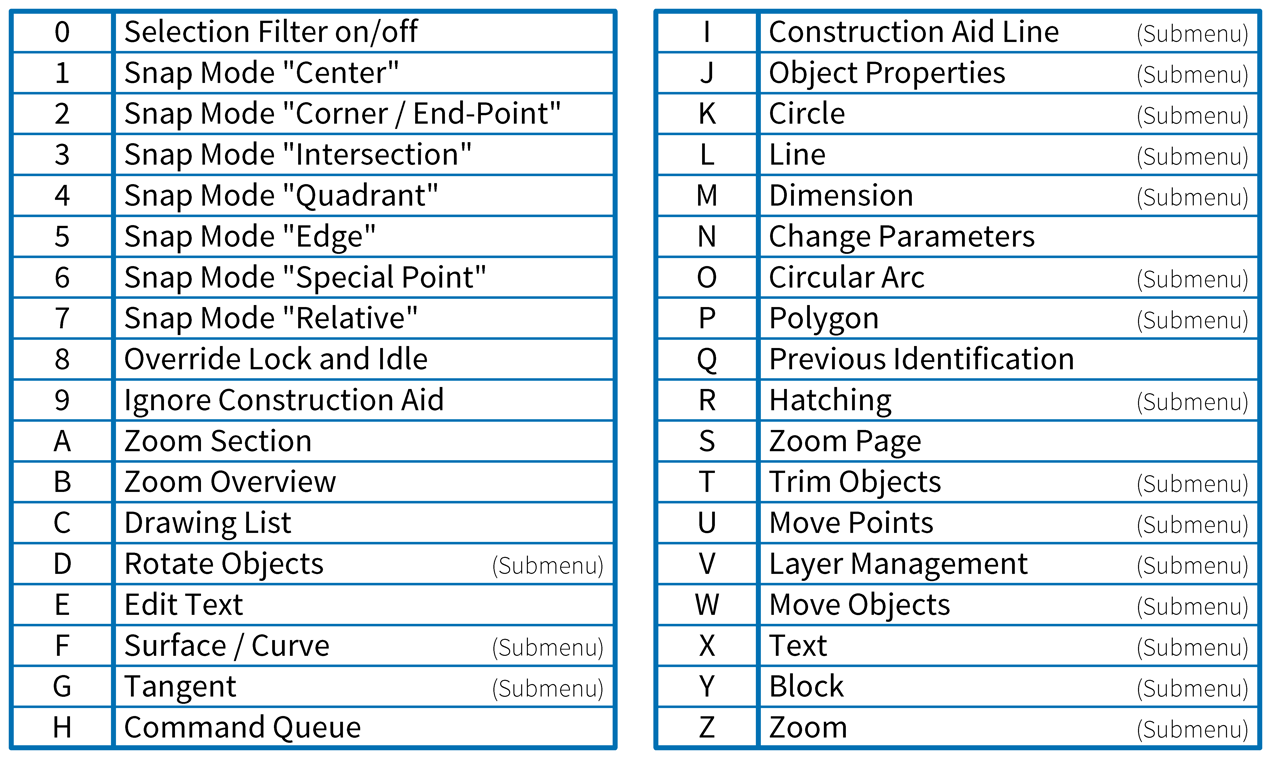

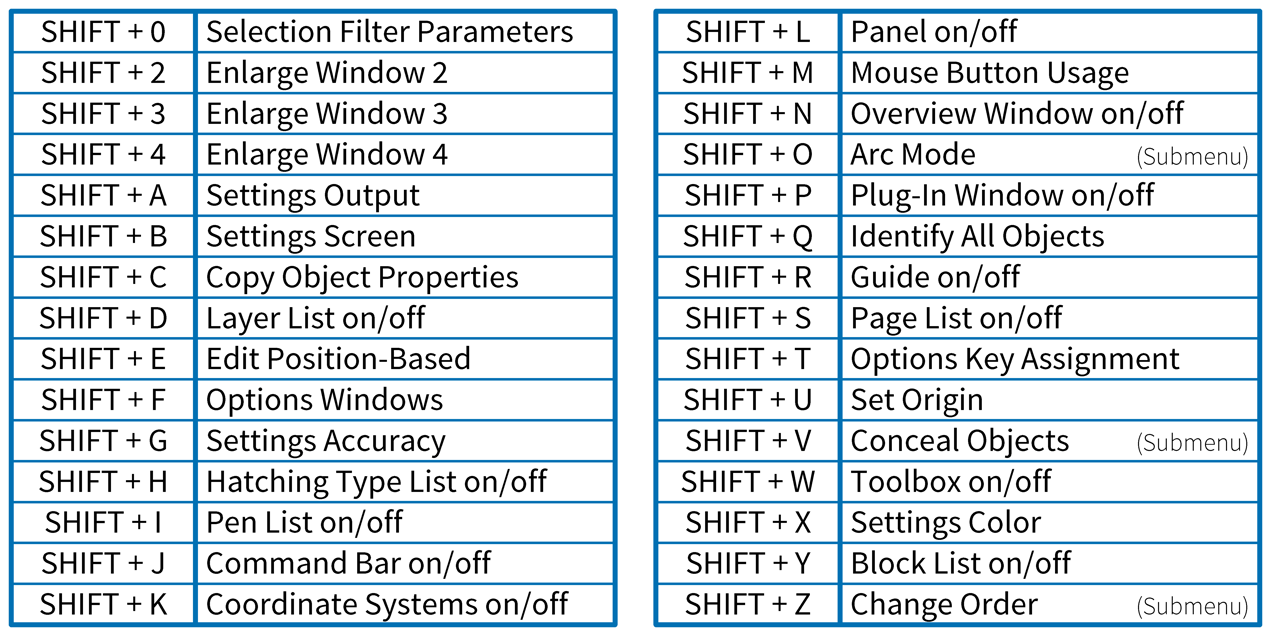

Default Assignment
