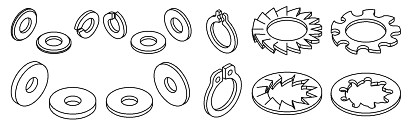

410: 3D Washers DIN 125, 128, 471, 6797, 6798, 7349, 9021 (Standard Libraries)

Author: Michel Christiaens

Library Content "(3D) Washers DIN 125A" (Plain)

M1.6..30

Library Content "(3D) Washers DIN 125B" (Single Chamfer)

M3..30

Library Content "(3D) Spring Lock Washers DIN 128B"

Ø2..30

Library Content "(3D) Shaft Retaining Rings DIN 471"

Left View\Ø3..Ø100

Right View\Ø3..Ø100

Library Content "(3D) Shaft Retaining Rings DIN 471 thick"

Left View\Ø15..Ø100

Right View\Ø15..Ø100

Library Content "(3D) Washers DIN 6797 and DIN 6798"

Serrated\Form A (externally)\M2..M30

Serrated\Form J (internally)\M2..M30

Toothed\Form A (externally)\M2..M30

Toothed\Form J (internally)\M2..M30

Library Content "(3D) Washers DIN 7349" (Heavy Duty)

M3..30

Library Content "(3D) Washers DIN 9021" (Large)

M3..20

Libraries with the addition "3D" do not contain any 3D data, only an isometric view!
