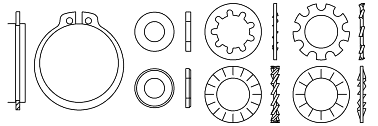

143: Washers DIN 125, 471, 6797, 6798 (Standard Libraries)

Author: Michel Christiaens

Library Content "Washers DIN 125"

DIN 125A flat\Front View\Ø1.1..Ø43

DIN 125A flat\Top View\Ø1.1..Ø43

DIN 125B with chamfer\Front View\Ø1.1..Ø43

DIN 125B with chamfer\Top View\Ø1.1..Ø43

Library Content „Wellen-Sicherungsringe DIN 471"

Front View\Ø3..Ø100

Side View\Ø3..Ø100

Library Content "Shaft Retaining Rings DIN 471 thick"

Front View\Ø15..Ø100

Side View\Ø15..Ø100

Library Content "Washers DIN 6797 and DIN 6798"

Serrated\Form A (externally)\Front View\M2..M30

Serrated\Form A (externally)\Top View\M2..M30

Serrated\Form J (internally)\Front View\M2..M30

Serrated\Form J (internally)\Top View\M2..M30

Toothed\Form A (externally)\Front View\M2..M30

Toothed\Form A (externally)\Top View\M2..M30

Toothed\Form J (internally)\Front View\M2..M30

Toothed\Form J (internally)\Top View\M2..M30
